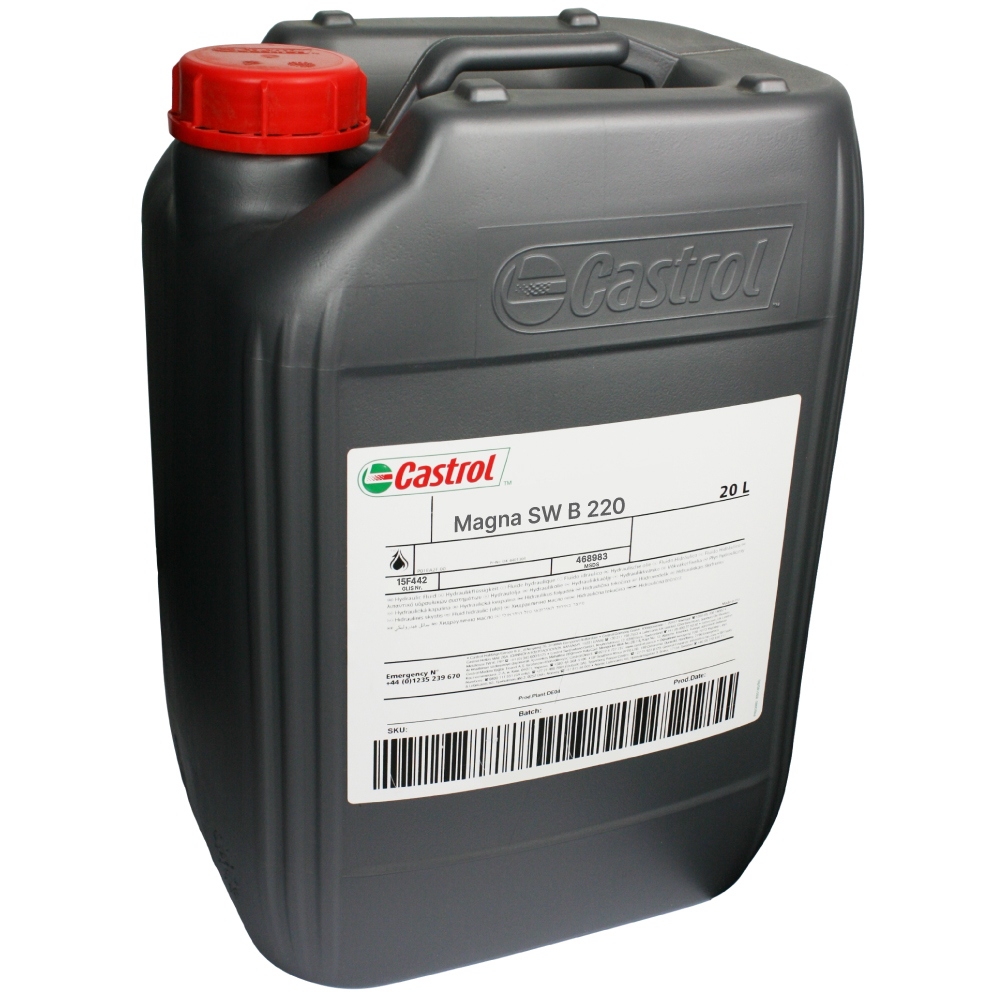

Castrol Magna SW B 220 Slideway oil 20l canister

Castrol Magna SW B 220 (previously called Magnaglide™ B grades) is a premium slideway lubricant for machine tools (ISO VG 220). They are based on highly refined mineral oils and additives to give controlled frictional characteristics in guideway sliding conditions.

• Volume: 20l canister
• Also available as: 208l barrel

Specifications / Approvals

• DIN 51502 (CGLP)

Application

The Magna SW B oils are recommended for the high performance lubrication of slideways on machine tools. They have excellent frictional characteristics, high adhesivity, and high film strength, so that they can be used in conditions of high loads and low sliding speeds on both vertical and horizontal guideways. Furthermore, they can be used for lead screw and nut systems, gears of feed mechanisms and oil lubricated milling heads. The Magna SW B oils meet the criteria of the Schmidt-Coburg friction and demulsibility tests, thus the range has excellent water wash off characteristics.

Advantages

• Accurate sliding movement leading to enhanced work piece surface finish.
• Excellent protection of slideways for maximum service life of machinery.
• Good wash off characteristics.
• Good compatibility with known construction materials of slideways.
• Conforms to Schmidt-Coburg requirements for friction and demulsibility properties.

Technical specifications

• Appearance: Clear and Bright
• Density @ 15°C / 59°F  kg/m³: 890
• Kinematic Viscosity @ 40°C / 104°F  mm²/s: 220
• Viscosity Index: 98
• Flash Point – open cup method °C/°F: 266/511
• Pour Point °C/°F: -24/-11
• ​GLIS number: 158B9E
• MSDS Code: 468983
