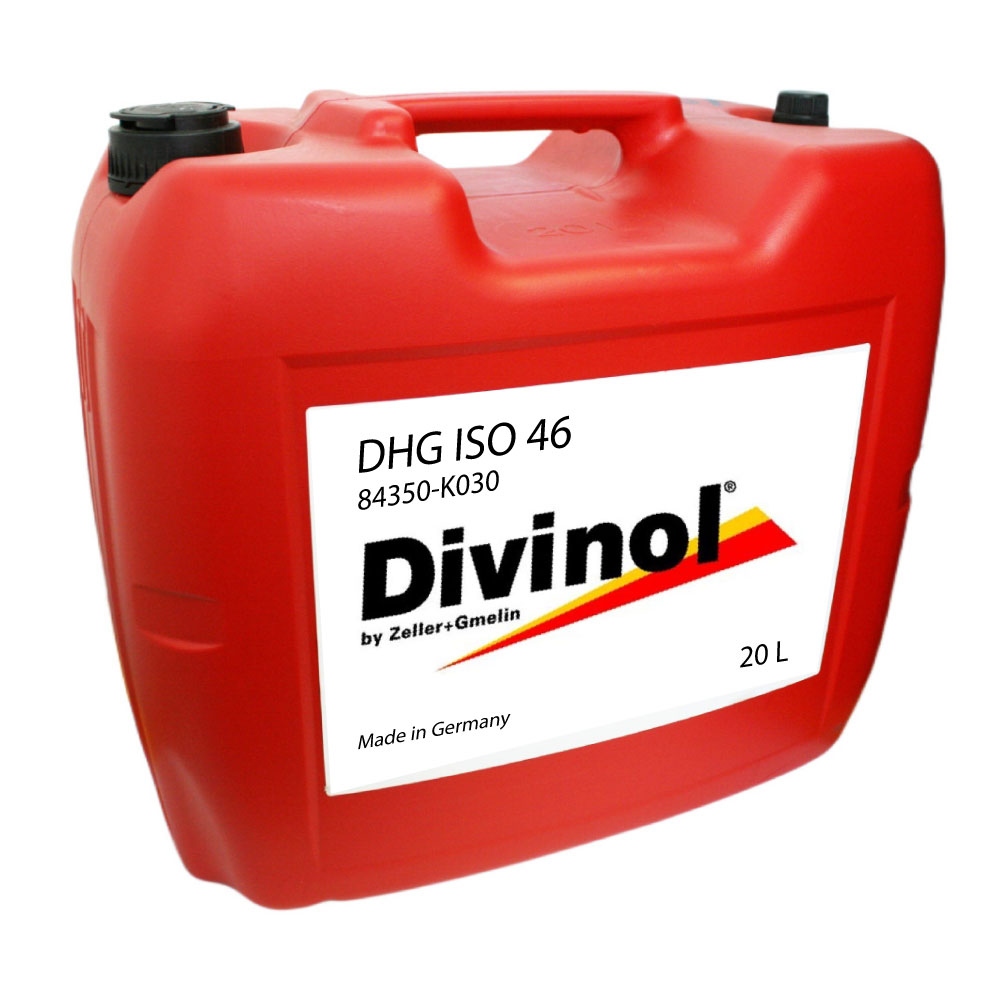

Divinol DHG ISO 46 Hydraulic Oil HLP-D zinc-based 20L

Divinol DHG ISO 46 Hydraulic Oil HLP-D zinc-based 20L

SKU: ID3ad311f368
Isporučivo

78,49 € cijena bez PDV-a

Pošaljite upit za ovaj proizvod

Isporučivo
Imate li pitanja?

+385 98 1777 898Uvijek dostupni

Najbolje cijene

Kompetentne cijene!

Zadovoljstvo zajamčeno!

Visoka razina kvalitete!

Dostupni stručnjaci

Besplatno savjetovanje!

Najbrža moguća isporuka

Brzo i sigurno!

Category:

Opis

Divinol DHG ISO 46 is a zinc-based, detergent-type hydraulic oil with high lubricity and excellent corrosion protection (HLP-D ISO VG 46). It exceeds the requirements of DIN 51524 Part 2.

  • Pack size: 20 L canister
  • Also available in: 60 L drum, 200 L drum
Applications
  • Mobile and stationary hydraulic systems with hydrostatic drives
  • Machining tools: lathes, drilling and milling machines
  • Injection molding machines exposed to coolant ingress
  • Systems at risk of condensation due to temperature fluctuations
Specifications and Approvals
  • HLP-D according to DIN 51524 Part 2 (except demulsifying behaviour)
  • FZG test A/8.3/90: load stage > 12
  • Covers the application range of HLP-type lubricated oils
Features
  • Detergent and dispersant additive technology
  • Very high lubricating performance
  • Excellent wear and corrosion protection
  • High oxidation stability
  • Zinc-based formulation for enhanced wear protection
  • Good air release properties (4 min at 50 °C)
Technical Data
Physical Properties
Viscosity grade (ISO VG)46
Colorlighter than 4.0 (DIN ISO 2049)
Density (15 °C)860 kg/m³ (DIN EN ISO 12185)
Viscosity (40 °C)46 mm²/s (ASTM D7042)
Viscosity (100 °C)6.9 mm²/s (ASTM D7042)
Viscosity index114 (ASTM D2270)
Pour point≤ -24 °C (ASTM D7346)
Flash point (Cleveland)> 210 °C (DIN ISO 2592)
Water content< 0.05 % (DIN 51777 A)
FZG test A/8.3/90load stage > 12 (DIN 51354)
Air release (50 °C)4 min (DIN ISO 9120)
Oxidation residue (ash)0.2 % weight (DIN EN ISO 6245)
Notes
  • Divinol DHG ISO 46 is ideal for systems exposed to coolant or water contamination.
  • Please observe the equipment manufacturer’s guidelines.
  • Formulated with zinc for active wear protection.
  • Cleaning additives help reduce contamination in heavily stressed systems.



Information on product safety (Manufacturer, Contact)

Zeller+Gmelin GmbH & Co. KG, Schlossstrasse 20, 73054 Eislingen/Fils, GERMANY, +49 7161 802-0, [email protected], www.zeller-gmelin.de
